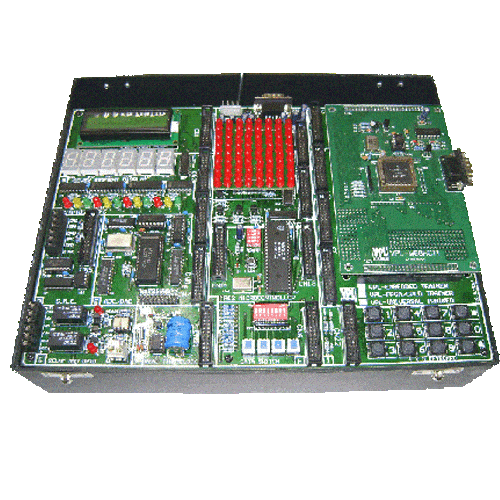

This trainer kit VPL-ET-VIRTEX is very useful trainer kit for vertex 600.

FEATURES:

It uses industry standard Virtex 600.
It communicates with computer through standard Webpack
It has a serial & parallel link which enable user to communicate with PC.
User can develop the circuit/schematic using Xilinx standard Foundation Series Software and any development tool for VLSI design available in the world
It has various on-board interfaces:.
- 16-2 LCD module
- Six Seven Segment Displays
- Stepper Motor Controller Interface
- 8-8 LED Matrix Display
- EWSN Status LED’s 12 Nos
- ADC/DAC Interface
- RS-232 interface
- Parallel JTAG interface
Four Data Switches
Switch Array
AT24C16 Serial EEPROM
4-4 Keyboard
Power Indicator LED
On board microcontroller with 64K flash, 1K RAM ISP with required software.
It has I/O counter interface to enable it to connect various demo modules. This helps in man to machine interface.
Has a general purpose areas on board to enable it to incorporate additional circuit.
