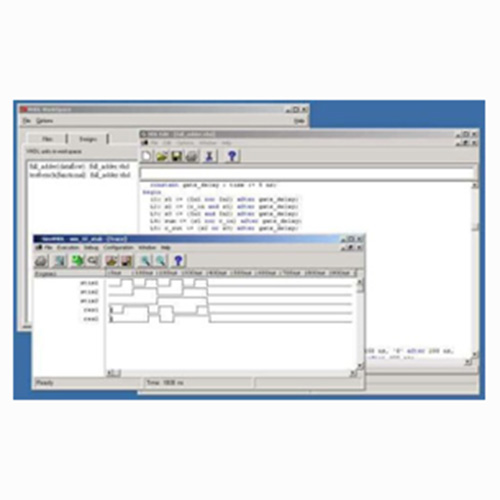

VHDL Simulator (DirectVHDL)

Learn VHDL the Direct way with our low-cost, interactive VHDL simulator. DirectVHDL is built around a VHDL interpreter that allows you to edit and simulate your VHDL design without complicated setup or compilation procedures. Direct VHDL simply loads and simulates in one step.

DirectVHDL includes the following:

• VHDL Workspace
  • An easy-to-use manager that serves as a starting point to launch the VHDL editor and simulator.

• VHDL Editor
  • An advanced editor providing syntax coloring and syntax-error detection. Perfect for beginners, this editor highlights syntax errors as you type!

• VHDL Simulator
  • Allows you to simulate and debug your design with a graphical waveform viewer.

• VHDL Tutorial
  • Provides an easy introduction to the VHDL language.

Requirements

Windows
Windows 95, 98, Me, NT 4.0, or 2000, 15 MB hard disk space, 64 MB RAM.

Mac OS X
