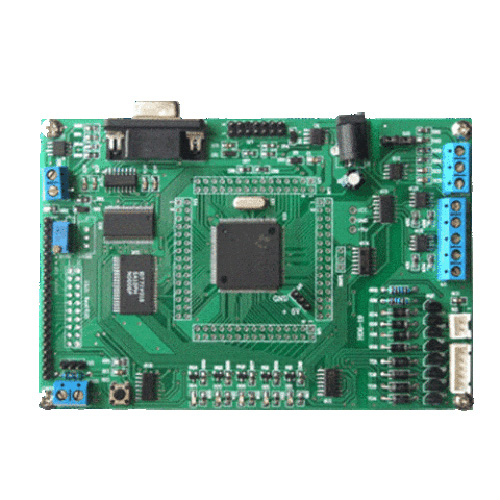

TMS320LF2407A DSP Based Trainer Kit (VPL-DSP2407)

Our DSP Lab Product VPL-DSP2407 Development Board, owing to high-quality features, is highly acclaimed in the market. Also, it is available at industry leading prices.

System resources:

• TMS320LF2407A DSP processor, the maximum operating frequency 40MHz
• DSP chips embedded SRAM word 2.5k
• DSP chips embedded 32k word FLASH
• 32k × 16-bit expansion of RAM, 32k × 16-bit data RAM
• LED display
• Procedures, data, IO can independently addressable 64k;
• I/O input-output module — four buttons control LED
• RS232 communications interface circuits
• 4 way 8 serial D/A output;
• A/D conversion module —2, 10 bit A/ D Sample (expandable to 16 channels)
• CAN module — CAN bus transceiver
• PWM control module —PWM micro-motor rotating direction (optional)
• Stepper motor interface (optional)
• T6963 controller 128 × 64 LCD interface (optional)

Extended Interface:

• DC5V external power supply interface
• JTAG IEEE 1149.1 standard interface
• 120pin functionality through pin socket
• RS232 standard interface connector socket
• D/A four channel output sockets
• 2-way D output socket interface
• CAN bus interface socket;
• Motor interface (optional)
• Stepper motor interface (optional)
• 16 characters x 2 LCD interface (optional)
• T6963 controller 128 × 64 LCD interface;
• Optional LCD backlight power external interface can choose the jumper.

Package Contents:

• DSP2407 development Card
• Serial Cable
• USB power line – 1
• 6 V DC Adapter – 1
• CD-ROM
