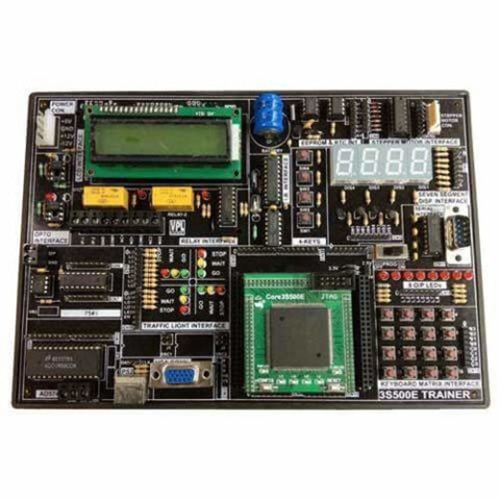

Spartan 3S500E based FPGA Trainer Kit is a powerful digital system design platform built around a Xilinx Spartan 3S500E FPGA. The VPL-Spartan3S500 is ideally suited to embedded processors like Xilinx 32-bit RISC processor. The on-board I/O devices like LCD, Keyboard, LEDs, Stepper Motor etc. allows user with a wide range of designs to be completed without the need of any additional components.
System Specification:
Based on Spartan3S500E with PROM XCF04 and 50MHz Oscillator.
Four Seven Segment Display Interface
LCD Display Interface
4-4 Matrix Keyboard Interface
Output LEDs 8 Nos.
8 Chanel ADC Interface
DAC Interface
Four Data Switches
Relay Interface
Opto Interface
I.R. Interface
Traffic Light Interface
Stepper Motor Interface
LED Matrix Interface (Optional)
At24C16 Serial EEPROM
Real Time Clock
RS-232 Interface using Rx/Tx of MCU for uploading/downloading
USB/Parallel Port based Programming for downloading files.
