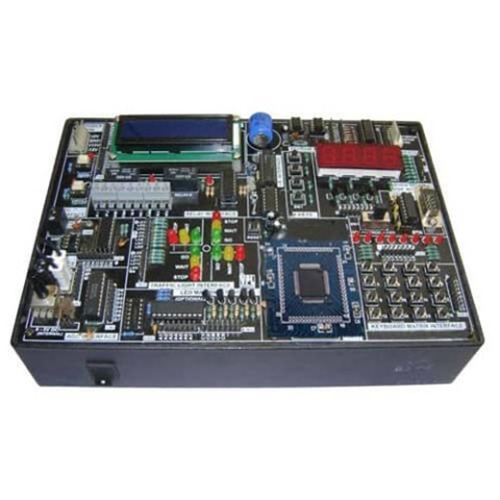

VPL-ARM-214X, the Embedded ARM Trainer has been designed by using Philips LPC214X Microcontroller. This controller provides in-system as well as in circuit programming so that one may be able to write program and download directly in the controller through serial port without removing it from the system.
System Specification:
CPU: Philips LPC214X Microcontroller
Four Seven Segment Display Interface
LCD Display Interface
4×4 Matrix Keyboard Interface
Output LED’s 8 Nos.
ADC Interface
Four Data Switches
Relay Interface
Opto Interface
I.R. Interface
Traffic Light Interface
Stepper Motor Interface
At24C16 Serial EEPROM
Real Time Clock
RS-232 Interface using Rx/Tx of MCU for uploading/downloading
Peripheral Features (Internal)
16/32 bit ARM7TDMI-S
512K Bytes Program Flash
42K Bytes RAM
USB 2.0
RTC
10 bit ADC 2.44 uS
2x UARTs
2x I2C
SPI
2x 32bit TIMERS
6x PWM
8x CCR
1x DAC
WDT
5V tolerant I/O
Up to 60MHz operation
Experiments:
Study of ARM7 processor architecture and pin diagram.
Study of Interrupt structure in ARM Processors.
Write ARM Processor program to Flash LED
Interfacing of an LCD Display
Write a program to interface an ADC
Write a program to generate a Ramp waveform using DAC interface
Write a program to control the speed of DC motor
Interface relays and write a program to control them
