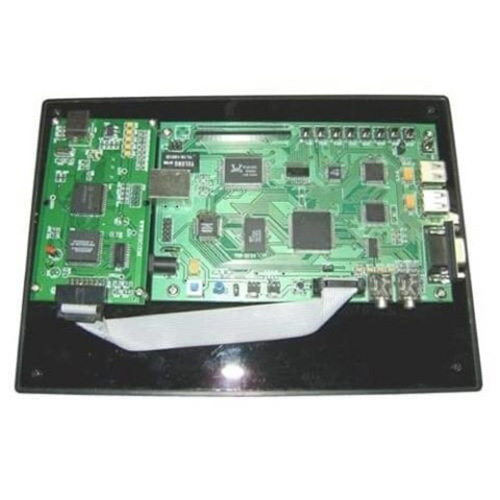

DSP55XX Development Board (VPL-DSP55XX) Manufacturers in New Delhi

VPL-DSP55XX Development Board is a fully functional learning and development platform based on TMS320VC55XX DSP. VPL-DSP55XX boards can be used both as a development board for users to learn, and as an embedded system board for the user’s secondary development of products in order to shorten the product development cycle. The market is by far the most cost-effective 5509 development board.

System Resources:

  • TMS320VC550XX, 32-bit fixed-point high-speed digital processor with highest frequency of 200 MHz.
  • Built-in 64 K Bytes ROM, 128 K * 16-bit RAM, including: 32 K * 16-bit dual-channel RAM (DARAM), 96K * 16-bit single RAM (SARAM)
  • 4M * 16-bit synchronous dynamic SDRAM, expandable to 8M * 16-bit
  • 1 M Bytes FLASH for user-friendly prototype development
  • 10-bit ADC
  • USB2.0 FullSpeed interface for transmitting images, video and other high-speed data
  • MMC / SD card interface, hot-swappable digital camera universal MMC / SD card
  • RTL8019AS network interface chips
  • TLV320AIC23 high-fidelity audio codecs
  • RS232 conversion circuit, to facilitate communication with the host computer
  • LCD interface
  • Five keys, user-friendly man-machine dialogue with LCD display
  • Shielded from the interruption source inputs
  • Provides up to 2-10 A / D inputs 8 GPIO interface, with the indicator light
  • Provide bus open, data lines, address line, the Line of Control, the special features pin all the leads, user-friendly secondary development
  • Code Composer Studio
  • JTAG Emulator

Code and related experiments – code for the C language

  1. Sine wave to square wave experiment
  2. Amplitude Modulation experiment
  3. 4/8 point DFT and IDFT experiment
  4. Circular convolution experiment
  5. GPIO experiment
  6. Real-time clock test
  7. Extension SDRAM read and write test
  8. Seven Segment Display experiment
  9. Bell experiment
  10. Keyboard scan experiment
  11. External interrupt input experiment
  12. AIC23 broadcasting experiments
  13. LCD display experiments
  14. Frequency Modulation experiment
  15. FSK experiment
  16. FIR filter experiment
  17. Fast Fourier Transform (FFT) test
  18. IIR filter experiment
