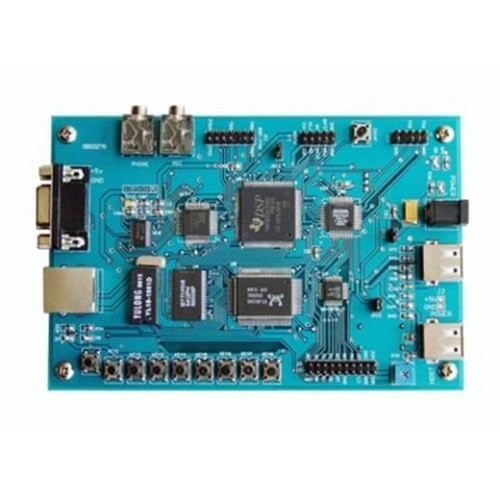

This package is a set of learning based on TMS320VC5402PEG100 DSP development platform for users to learn to use and understand.
System Resource:
DSP processor TMS320VC5402PEG100, the highest frequency of 100 M
DSP chip built-in 16K * 16-bit DARAM, can be configured to process data areas and zones
DSP chip extended 64K * 16-bit SRAM, through changes in the CPLD logic, can be as data, can also be used as a procedural area
Panel RTL8019AS network interface chips, user-friendly realization of Ethernet communications.
Panel TLV320AIC23 audio codecs, user-friendly recording and radio to achieve.
Panel HOST USB interface chip SL811H, user-friendly plug-ins to achieve mass storage devices.
Panel HOST USB interface chip SL811H, by targeting them work in the HOST or SLAVE, Board at the same time provide HOST USB interface and SLAVE USB interface.
LCD panel graphics interface, and the provision of basic GUI interface.
Board as many as eight buttons, a user-friendly human-machine dialogue to achieve with LCD
Panel EPM7032AE CPLD, DSP and peripherals handle the sequential logic, CPLD JTAG mouth of the users, with Families can learn to use a CPLD. At the same time provide the VHDL DEC5402 board CPLD internal procedures and the logic of plans (Part Translation directly downloaded to ensure error-free)
Board to provide input interrupt source interface
Board to provide automatic manually reset circuit for debugging
Panel STC89LE58RD microcontroller, through the HPI interface and DSP connected, and DSP stored in the process of STC89LE58RD .
Panel JTAG interface, you can connect all kinds of TI’s DSP simulator.
