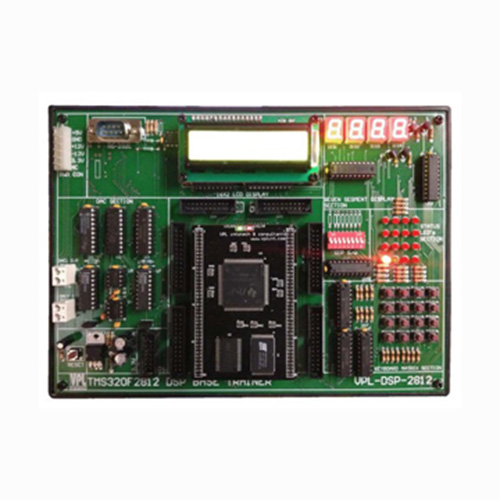

DSP2812 Development Board (VPL-DSP2812)

System

This package is a set of learning based on TMS320F2812 DSP development platform, TMS320F2812 development kit to a development board for users to learn to use, as the system board can also be embedded into the user’s products for users of secondary development in order to shorten the product development cycle.

Specification

• DSP processor TMS320F2812, 32-bit fixed-point high-speed digital processor, the highest frequency of 150 M
• On Chip featurs:
  •       – 16 PWM Outputs
  •       – 2x8bit Multiplexer 16 channel ADC inputs
  •       – 56 individually programmable GPIO lines
• On Chip Memory
  •       – Built-in 128 K x 16-bit FLASH, users can be stored procedures, FLASH can be encrypted.
  •       – 1K x 16 bit OTP ROM
  •       – 14 K x 16-bit SRAM
• On board memory:
  •       – 64K x 16 bit EPROM
  •       – 128K x 16 bit PWM output and 16 channel of ADC inputs
  •       – Serial Port
  •       – Window based CCSxx software
  •       – Assembler & disassembler
• On Board Interfaces:
  1.       – 16 x 2 LCD interface
  2.       – 4 Seven Segment Display
  3.       – 16 Status LED’s
  4.       – 8 DIP Switches Interface
  5.       – RS-232 Interface
  6.       – Dual DAC Interface
  7.       – PWM Interface (on-chip)
  8.       – ADC Interface (on-chip)
  9.       – JTAG Port for programming & debugging

Package Contents

• DSP Board
• Interface Cables
• Software CD
• User Manual
