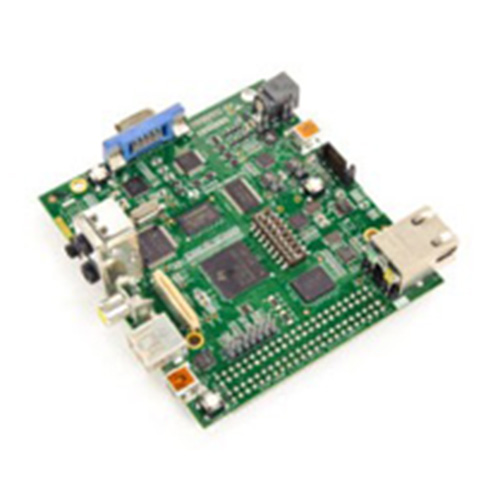

DSP Educational Practice Board with JTAG Emulator (VPL-DSP-6748)

SPECIFICATIONS:

• TMS320C6748 – Fixed/ Floating Point Digital Signal Processor, operate up to 456 MHz On board 14 Pin (2×7 Pin) JTAG emulation connector, Boot mode selection switch
• 256 MB Flash memory
• 128 MB DDR2 RAM memory
• DB9 connector for UART-1 interface, 3 pin header for UART- 2 interface
• USB TYPE B Connector for UART-2 interface for Debug Console
• LED indication for USB connection for Debug Console
• Reset Switch with LED indication
• USB Type A Connector for USB host interface, micro USB Type A Connector for USB OTG interface
• RJ45 connector for 10/100 Ethernet interface
• I2C based Temperature sensor
• I2C based RTC interface with battery backup
• SPI based micro SD card interface
• SATA connection
• Power-On LED indication, 4 User LED at GPIO Pin as GPIO Test point
• 5 user push buttons for various applications
• Boot mode selection switch, Video in port , VGA out connector, composite video out connection
• Graphics LCD interface connector, audio jack and speaker (Mic in) interface, audio codec for speaker out
• CMOS sensor connector to interface CMOS camera
• Temperature sensor with interrupt out facility
• Jumper selection to switch various video out options
• LED to indicate power surge , LED to indicate high voltage input, excessive voltage protection circuit with LED indication
• Various test points for various signals
• Jumper selection to switch UART2 between USB connector and 3 pin connector

 USB JTAG Emulator

• The emulator provides JTAG access to Texas Instruments’ JTAG based devices,
• It is compatible with Code Composer Studio™ development environment,
• Debug features (Emulation Connect/Disconnect, Read/Write memory, Read registers, Load program, Run, Halt, Step, Software and
• Hardware Breakpoint support, Real-Time Mode),
• Support for targets with 1.8v and 3.3v IO voltages,
• Support for USB High Speed (480 Mbit/s) ,
• Supports cable-break detection , target power loss detection support, multiple FTDI devices support, Adaptive clocking, LED light to indicate active USB connection, Compatible with CCSv5 or above,
• Working of USB JTAG Emulator demonstrated with the above all in One DSP Educational Practice Board DSP kit.
