The Digital Trainer Kit (VPL-DICT-GF) has been designed with the idea of providing basic facilities essential for conducting simple experiments in the laboratory. Using these facilities one can get familiarised with the various digital ICs. The system is suitable for conducting experiments on TTL ICs. Eight numbers of logic switches are provided onboard for giving digital inputs in the circuit.
Technical Specifications:
Digital Trainer with on-board IC’s
Quad 2-input NAND Gate (7400)
Quad 2-input NOR Gae (7402)
Hex Inverters (7404)
Quad 2-Input AND Gate (7408)
Quad 2-Input OR Gate (7432)
D-Flip Flop (7474)
Dual JK Flip Flop (2 Nos. 7476)
Dual 2-EX OR Gate (7486)
Binary Up Counter (7439)
Binary Decoder (74138)
Multiplexer (74150)
Multiplexer (74151)
Synchronous Binary Counter (74163)
ALU (74181)
Decimal Up/Down Counter (74190)
Shift Register (74194)
A to D Converter(ADC-0809)
D to A Counter (DAC-0800)
7 Segment LED Display (4 Nos.)
Logic Input Switches (10 Nos.)
Logic Status Indicators (10 Nos.)
Bounceless Pulser
1 Hz & 1 KHz Clocks
Inbuilt Power Supply
Assembled in plastic Box with Circuit Screen Printed on the Panel with 2mm Socket for Test Points

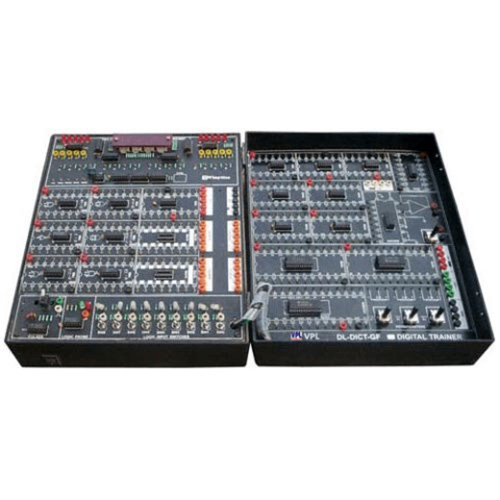

.jpg "Digital Trainer-Gates, Flip-Flops, Counters etc. (VPL-DICT-GF) Manufacturers in New Delhi")
