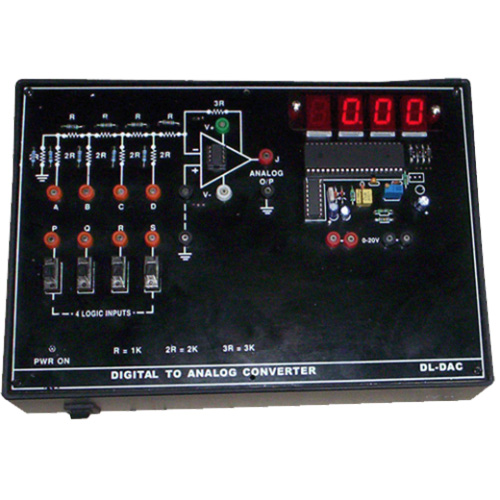

Digital To Analog Converter (VPL-DL-DAC )

We have carved a niche in this industry for offering Analog to Digital Converter Trainer to our most precious patrons. This range is prepared by the professionals who have expertise in this domain. Also, it is prepared in adherence to the set industry principles.

Technical Specification

1. 4 bit weighted resistor
2. 4 bit R-2R ladder network
3. 8 bit monolithic D/A converter

• Signal : DC Supply with toggle switches
• O/P Indications: On DMM or Oscilloscope
• Interconnection: 4mm Banana sockets
• Dimensions(mm):- W340xD240xH105 (approx.)
• Power Supply: 220V ±10%, 50Hz
• Power Consuption: 3VA (approx)

Accessories included: Line Cord, Manual & Set of Patch cords & Multimedia interactive computer based training manual & software.

Experiments that can performed

• 4 bit weighted resistor converter
• R-2R ladder network D/A converter
• 8 bit monolithic D/A converter
