Pioneers in the industry, we are engaged in offering a wide and high-quality assortment of Digital Lab Trainer to the clients. The entire range is tested over the grounds of quality parameters to ensure the delivery of flawless products to the clients’ premises.
Salient Features:
Hi Quality Bread board.
Ready to use circuit boards (optional)
On Board DC power supply
On Board 1 MHz Pulse Generator
Pulser switches, 8 bit data switches
Bicolor LED display & Logic probes
BCD to seven segment display
More than 25 designed experiments for breadboard.
Fictional blocks indicated on board mimic.
Specifications:
Breadboard
172.5 mm × 128.5 mm
Tie Points
1685
DC Power Supply
5V/ 1A, ±12V/ 500mA,
0V TO 15V /500 mA (variable),
0V TO -15V/ 500mA (variable)
AC Power Supply
9V – 0V – 9V
Pulse/Function Generator
Frequency Range
1 Hz to 1 MHz in 6 steps. Variable in
between
Amplitude
3V – 15V (CMOS), 5V (TTL)
Duty cycle
50%
Pulser switches
2 Nos. (Push to On)
Data Switches
8 Nos. (Toggle Switches)
LED Display
8 Nos.
7 Segment Display
2 Nos.
Logic probe
Logic Level Indicator
Continuity Tester
Provided onboard.
Power
220V ± 10%, 50/60 Hz
Power Consumption
3VA (approx)
Accessories Included
Mains cord, Operating and experimental
Manual (with more than 25
designed experiments), patch cords.

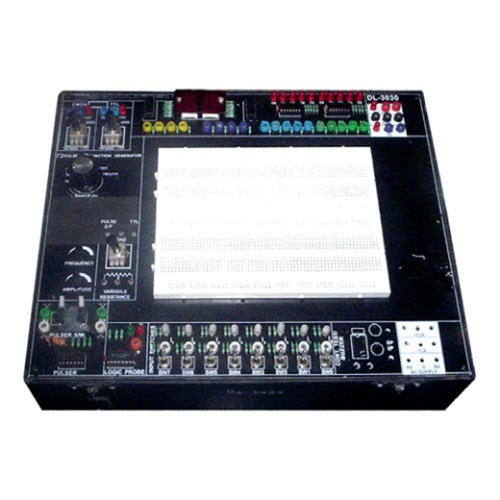

.jpg "Digital Lab Trainer (VPL-DL-3030) Manufacturers in New Delhi")
