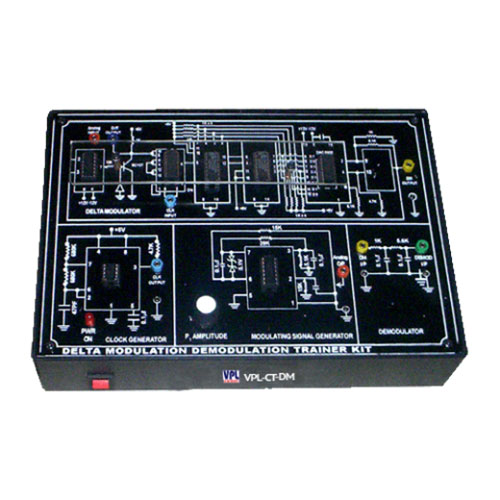

Delta Modulation & Demodulation Trainer (VPL-CT-DM)

TECHNICAL SPECIFICATIONS

• To study the Delta modulation & demodulation technique
• Circuit diagram printed on pcb
• Built in TTL Clock Generator
• Modulating signal Generator 1KHz with variable amplitude
• Delta Modulator
• Delta Demodulator
• Interconnection : 2/4mm banana sockets
• DC Supply : Built in IC regulated power supplies
• 220V ±10%, 50Hz mains operated
• Enclosed in an attractive ABS plastic cabinet with cover
• Standard Accessories : User's Manual with patch cords
