This Digital Trainer Kit with Bread Board has been designed with the idea of providing basic facilities essential for conducting simple experiments in the laboratory. Using these facilities one can get familiarized with the various digital ICs. Using this trainer, one can get familiarized with the various digital ICs. The system is suitable for conducting experiments on TTL ICs. The system has an onboard facility of four crystal generated clock output of 1MHz, 100Hz, 10Hz & 1Hz. It has a facility of Single Pulse Generation by push button switch. Four Seven Segment Display with BCD inputs having breadboard area facility of 1200 TIE points.
Salient Features:
Ready to use circuit boards (optional)
On Board DC power supply.
On Board 100 KHz Function Generator
2 Pulser switches, 10 data input switches.
Bicolor LED display & Logic probes.
BCD to seven segment display.
Fixed TTL Clock of 0.1Hz and 1Hz.
More than 20 designed experiments for breadboard.
Fictional blocks indicated on board mimic.
Optional ready to use circuit boards.
Technical Specifications:
Breadboard : 172.5 mm × 128.5 mm
Tie Points : 1685
DC Power Supply : + 5V – 1A, -5V 500mA, +15V, -15V (fixed)
0V to 15V 500 mA (variable),
0V to -15V, 500mA (variable)
Pulse/Function Generator
Frequency Range : 10 Hz to 100 KHz in 5 steps Variable in between
Duty cycle : 50%, TTL output
Pulser switches : 2 Nos. (Push to On)
Data Switches : 10 Nos. (Toggle Switches for both TTL)
LED Display : 10 Nos. (TTL Mode)
Seven Segment Display : 4 Nos.
Logic probe : Logic Level Indicator for TTL
Potentiometer : 3 Nos.
Power : 220V ± 10%, 50/60 Hz
Power Consumption : 3VA (approx)
Accessories Included : Mains cord, Operating and experimental Manual (with more than 20 designed experiments), patch cords.
Experimental Modules (Optional):
HALF/FULL ADDER AND SUBTRACTOR
Half Adder
Full Adder
Half Subtractor
Full Subtractor
MULTIPLEXER & DEMULTIPLEXER
Multiplexer
Demultiplexer
ENCODER & DECODER
Encoder
Decoder
STUDY OF FLIP-FLOPS
RS Flip-Flop using NAND Gates
D Flip-Flop
JK Flip-Flop
COUNTERS
Asynchronous Counter
4 Bit Binary Asynchronous Counter
SHIFT REGISTER (SISO/SIPO)
Serial IN Serial OUT
Serial IN Parallel OUT
Bidirectional Shift Register (74194)
MODULE N COUNTER & DECADE COUNTER
7493 – 8 Bit Binary Counter
74190 – Up-Down Counter with Preset

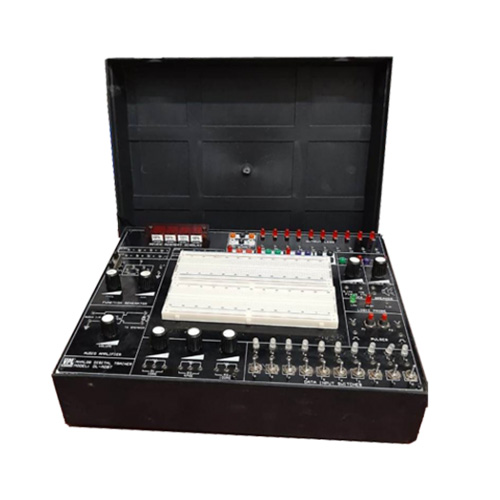

.jpg "Analog Digital Trainer Kit (VPEDU-DL-ADBT) Manufacturers in New Delhi")
