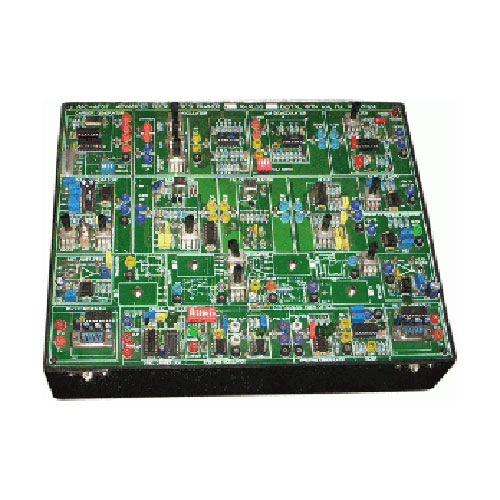

Amplitude Modulation & Demodulation Trainer(CT-AMDT)

Pioneers in the industry, we are engaged in offering a wide and high-quality assortment of Amplitude Modulation & Demodulation Trainer to the clients. The entire range is tested over the grounds of quality parameters to ensure the delivery of flawless products to the clients premises.

TECHNICAL SPECIFICATIONS

• Carrier signal generator: 100KHz to 2MHz
• Variable Modulating signal generator
• Inbuilt regulated power supply
• Square law diode modulator circuit
• Switching modulator circuit
• Balanced modulator circuit
• Ring modulator circuit
• envelop detector circuit
• Square law detector circuit
• Able to analyze diagonal peak clipping effect
• Automatic gain control
• Built in power supply
• Transmission and receiving media: both wireless (MW Coil antenna) and wired(via cable).
• Test points: more than 10
• Enclosed in cabinet with cover
• Interconnections: 2/4 mm banana socket
• Power: 220V AC +10%, 50/60Hz mains operated
• Hard/Soft copy of the manual.
• Accessories

(i)    Set of Patch Cords

(ii)   User’s Manual

Experiments

• Study of AM modulators
• Study of AM demodulators
• Study of Ring modulator circuits
