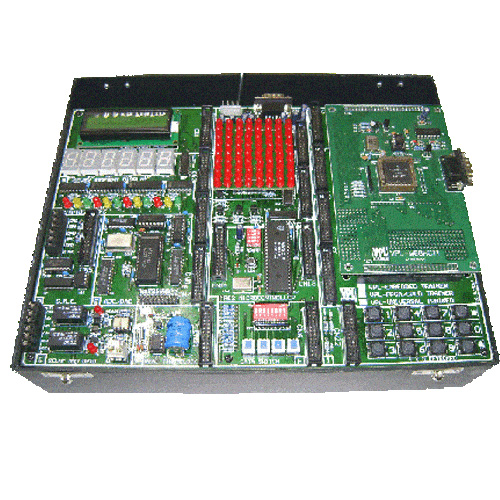

This trainer kit VPL-ET-ALTERA is very useful trainer kit for ALTERA CPLD 7128/1K50.
FEATURES:
– It uses industry standard Altera CPLD 7128/1K50.
– It communicates with computer through standard Webpack
– It has a serial & parallel link which enable user to communicate with PC.
– User can develop the circuit/schematic using Xilinx standard Foundation Series Software and any development tool for VLSI design available in the world
– It has various on-board interfaces:.
* 16×2 LCD module
* Six Seven Segment Displays
* Stepper Motor Controller Interface
* 8×8 LED Matrix Display
* EWSN Status LED’s 12 Nos
* ADC/DAC Interface
* RS-232 interface
* Parallel JTAG interface
– Four Data Switches
– Switch Array
– AT24C16 Serial EEPROM
– 4×4 Keyboard
– Power Indicator LED
– On board microcontroller with 64K flash, 1K RAM ISP with required software.
– It has I/O counter interface to enable it to connect various demo modules. This helps in man to machine interface.
– Has a general purpose areas on board to enable it to incorporate additional circuit.
