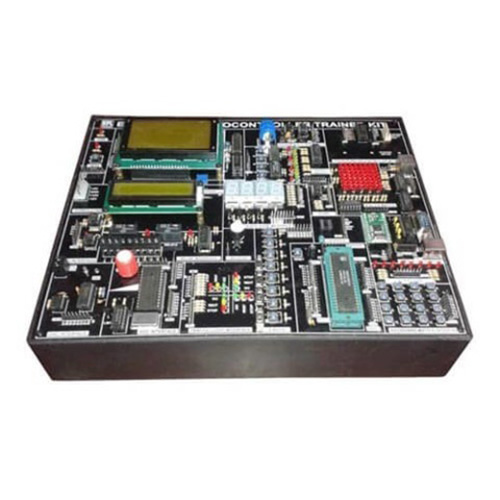

Advance 8051 Microcontroller Trainer Kit (VPL-ET-ADV)

Advance 8051 Microcontroller Trainer Kit VPL-ET-ADV has been designed by using Philips 89V51RD2 Microcontroller. This controller provides in-system programming so that one may be able to write program and download directly in the controller through serial port without removing it from the system.

Specifications:

• CPU: Philips 89V51RD2 Microcontroller with clock frequency @11.0592 MHz.
• Four Seven Segment Displays
• 16×2 LCD Display Interface
• Graphical LCD Interface (Opional)
• EWSN Status LED’s 8 Nos.
• 8 Chanel ADC Interface
• DAC 0800 Interface
• LED Matrix Interface (Optional)
• 4×4 Matrix Keyboard Interface
• PS2 Keyboard Interface
• Traffic Light Interface
• Stepper Motor Controller Interface with stepper motor
• Buzzer Interface
• PWM & Interrupt Interface
• Eight Data Switches
• LM35 Temperature Interface
• IR Interface
• Relay
• Opto
• Real Time Clock with battery backup
• At24C16 Serial EEPROM
• USB Interface
• RS-485 Interface
• RS-232 Interface using Rx/Tx of MCU for uploading/downloading
• On-chip Flash Program Memory with ISP and IAP capability
