8086-88 Microprocessor Trainer (VPL-8609U-VPL-8609ADU-VPL-8609NIOU)

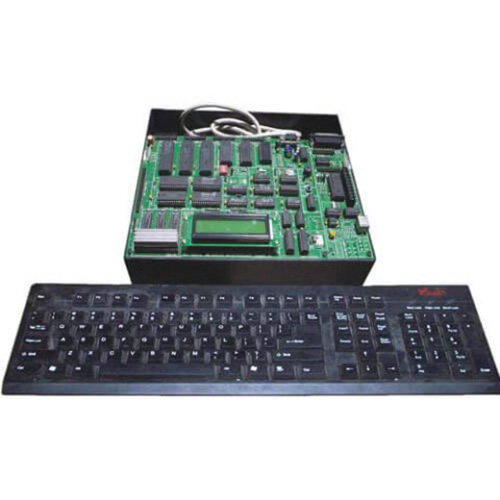

8086/88 Microprocessor Trainer with LCD Display, USB interface, EPROM Programmer, ADC, DAC & Power Supply. There are three models VPL-8609U, VPL-8609ADU and VPL-8609NIOU with few additional features.

Features:

• Hassle free performance
• Robust construction
• Long service life

Technical specifications for VPL-8609U:

• Based on 8085 CPU operating at 6.144 MHz crystal
• 16K bytes of EPROM with powerful monitor program
• 16K byte of RAM available to the user
• Battery backup for user’s RAM with 3.6V rechargeable cell
• Total on board memory expansion upto 64K bytes using 2732/2764/27128/6264
• Memory mapping definable by the user
• 20×2 Liquid Crystal Display for standard model [Display can be replace by 20×4 or 40×2 on request at additional cost]
• 104/105KeysIBM PC Compatible ASCII Keyboard
• 8251 USART interface through RS-232C port
• 48 programmable I/O lines through 2 nos. of 8255
• 16 bit programmable timer/counter using 8253
• USB Interface to connect kit to computer (OPTIONAL)
• V-USB Terminal Software to operate kit from USB Port to execute all commands like Examine Mem, Execute, Assembler & Dissembler etc.
• RS-232C interface for CRT using SID / SOD lines
• Real Time Clock using 6264 (OPTIONAL).
• Two modes of Commands: Key board Mode & Serial Mode
• All address, data and control lines are buffered & made available at connector as per STD Bus configuration
• Powerful Software Commands like relocate, string, fill, insert, delete, block move, memory compare etc.
• Onboard Single Line Assembler/Disassembler
• Facility for Downloading/Uploading files from/to PC
• Enclosed in an attractive ABS plastic cabinet with cover
• In-built Power Supply
• User’s Manual

Additional Technical Features of VPL-8609ADU :
All Specifications are same as VPL-8609U above with following additional features:

• Additional serial port using 8251
• EPROM Programmer for 27 series with 28 pin ZIF
• Interrupt Controller using 8259 & Printer Interface
• 8 Channel 8 bit ADC using 0809
• 1-Channel 8 bit D/A using DAC 0800
• 1 Relay output & 1 Opto isolated input

Additional Technical Features of VPL-8609NIOU
All Specifications are same as VPL-8609ADU above with following additional features:

• Onboard socket provided to facilitate the use of 8089 processor & 8087 Numeric Data Processor with printer interface.

Ordering Information:

• VPL-8609U – 8086/88 Microprocessor Trainer Kit with basic features.
• VPL-8609ADU – 8086/88 Microprocessor Trainer Kit with additional features over basic kit.
• VPL-8609NIOU – 8086/88 Microprocessor Trainer Kit with additional features over ADU Kit above.
