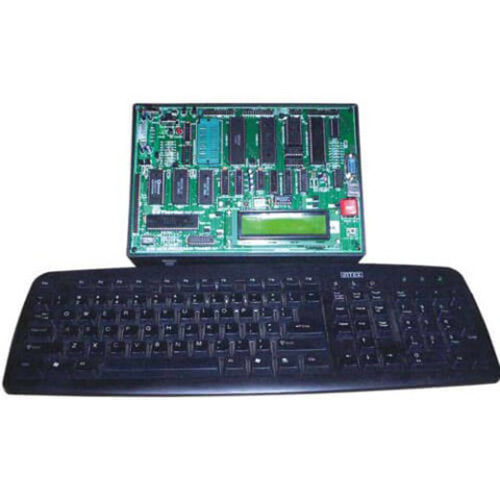

With many years of involvement in this field, we are offering the best and outstanding quality VPL-8509U & VPL-8509ADU Microprocessor Trainer with LCD Display, USB Interface, ADC & DAC, EPROM Programmer and inbuilt power supply to our precious patrons. It is assembled with the utilization of optimum quality components and progressive technology in adherence to the set industry standards.
Features:
Optimum performance
Durability
Fine functionality
Technical specifications for VPL-8509U:
Based on 8085 CPU operating at 6.144 MHz crystal
16K bytes of EPROM with powerful monitor program
16K byte of RAM available to the user
Battery backup for user’s RAM with 3.6V rechargeable cell
Total on board memory expansion upto 64K bytes using 2732/2764/27128/6264
Memory mapping definable by the user
20×2 Liquid Crystal Display for standard model [Display can be replace by 20×4 or 40×2 on request at additional cost]
104/105KeysIBM PC Compatible ASCII Keyboard
8251 USART interface through RS-232C port
48 programmable I/O lines through 2 nos. of 8255
16 bit programmable timer/counter using 8253
USB Interface to connect kit to computer (OPTIONAL)
V-USB Terminal Software to operate kit from USB Port to execute all commands like Examine Mem, Execute, Assembler & Dissembler etc.
RS-232C interface for CRT using SID / SOD lines
Real Time Clock using 6264 (OPTIONAL).
Two modes of Commands: Key board Mode & Serial Mode
All address, data and control lines are buffered & made available at connector as per STD Bus configuration
Powerful Software Commands like relocate, string, fill, insert, delete, block move, memory compare etc.
Onboard Single Line Assembler/Disassembler
Facility for Downloading/Uploading files from/to PC
Enclosed in an attractive ABS plastic cabinet with cover
In-built Power Supply
User’s Manual
Additional Technical Features for VPL-8509ADU:
All specifications are same as VPL-8509U with following additional features:
Additional serial port using 8251
EPROM Programmer for 27 series with 28 pin ZIF
Interrupt Controller using 8259 & Printer Interface
