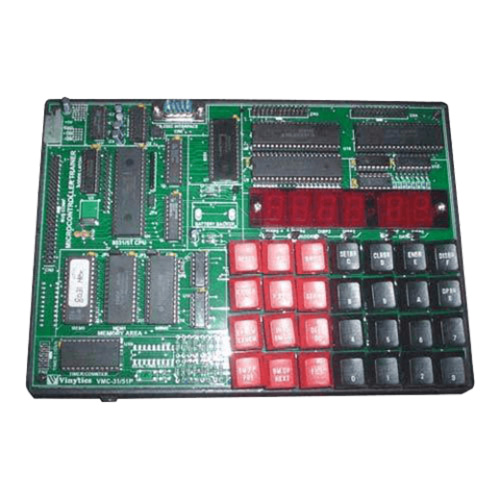

Our Microcontroller Educational Kit VPL-31/51 is based on 8031/8051/8751 Micro-controller included with LED Display, USB Interface & Inbuilt Power Supply.
SPECIFICATIONS FOR VPL-31/51:
Based on 8031/8051/8751 operating at 10/12 MHz.
On board 8K RAM.
Battery backup for RAM area.
8/16K bytes of EPROM with powerful monitor program.
Total memory expandable upto 128K Bytes.
48 I/O lines using 2 nos. of 8255.
Two External interrupts INT0 & INT1.
Hexadecimal Keyboard and Six Seven Segment displays.
RS-232C interface using 8251.
USB interface to connect kit to computer (optional)
Auxiliary RS-232C using serial pins of 80C31.
All data, address and control signals (TTL compatible) available at FRC connector.
Powerful software commands like INSERT, DELETE, BLOCK MOVE, SET/CLEAR BREAK POINT, SINGLE STEP, EXAMINE THROUGH REGISTER, EXECUTE, EXAMINE, MODIFY, PROGRAM/DATA/INTERNAL MEMORY etc.
Uploading/Downloading facility from PC in Intel Hex format.
Enclosed in attractive ABS plastic cabinet with cover.
In-built Power Supply.
User’s Manual, Cables & Connectors.
Ordering Information:
VPL-31/51 – 8031/51 Microcontrollar with LED Display.
VPL-31/51LCD – VPL-31/51 with LCD display & ASCII Keyboard.
