VPL-6803 Microprocessor Trainer is based on MC68000 CPU operating at 8 MHz woth 32K ROM.
SPECIFICATIONS FOR VPL-6803:
- MC68000 CPU operating at 8 MHz.
- 32 KB ROM with Monitor FIRMWARE-TUTOR.
- EPROM expansion possible up to 64K maximum.
- 16 KB static RAM.
- RAM expansion possible up to 128KB.
- Standard/Intelligent programming modes.
- Two RS-232 channels with jumper selectable baud rates from 75 to 192000.
- Five 8-bit parallel ports, 3 from 8255, 2 from 6821.
- 68230 PI/T is used to provide an 8/16 bit parallel interface and a 24-bit timer. It is also used to provide a Centronics parallel printer port.
- Seven segment display & hex keyboard.
- On board single line Assembler and Disassembler.
- Interrupt function.
- MACSBUG/VERSABUG command subset for debug functions.
- System address, data bus brought out on a 50 pin FRC connector and control bus brought on a 26 pin FRC connector for expansion and interfacing.
- Optional Macro Cross Assembler avaible for use on IBM compatible PC to assemble and download user programs.
- In-built power supply
- User’s Manual, Cables & Connectors.

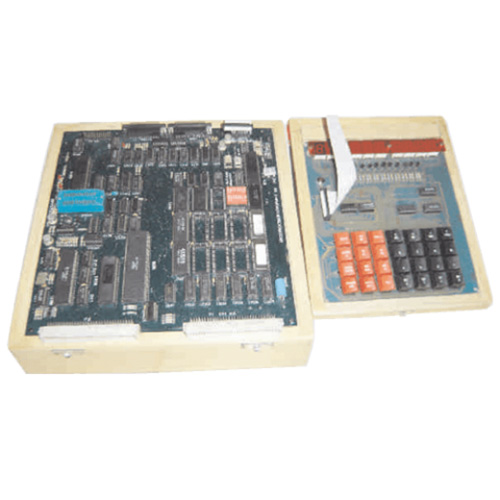

.jpg "68000 Microprocessor Trainer Kit (VPL-6803) Manufacturers in New Delhi")
